Bittle X Platform
The 3D model for the Bittle X hardware and software of LineChef (LineChef/BittleX).
A peg platform on the stock Petoi Bittle X back cover, and a Raspberry Pi add-on that clicks onto it. Download the documents, the print files and the CAD below.

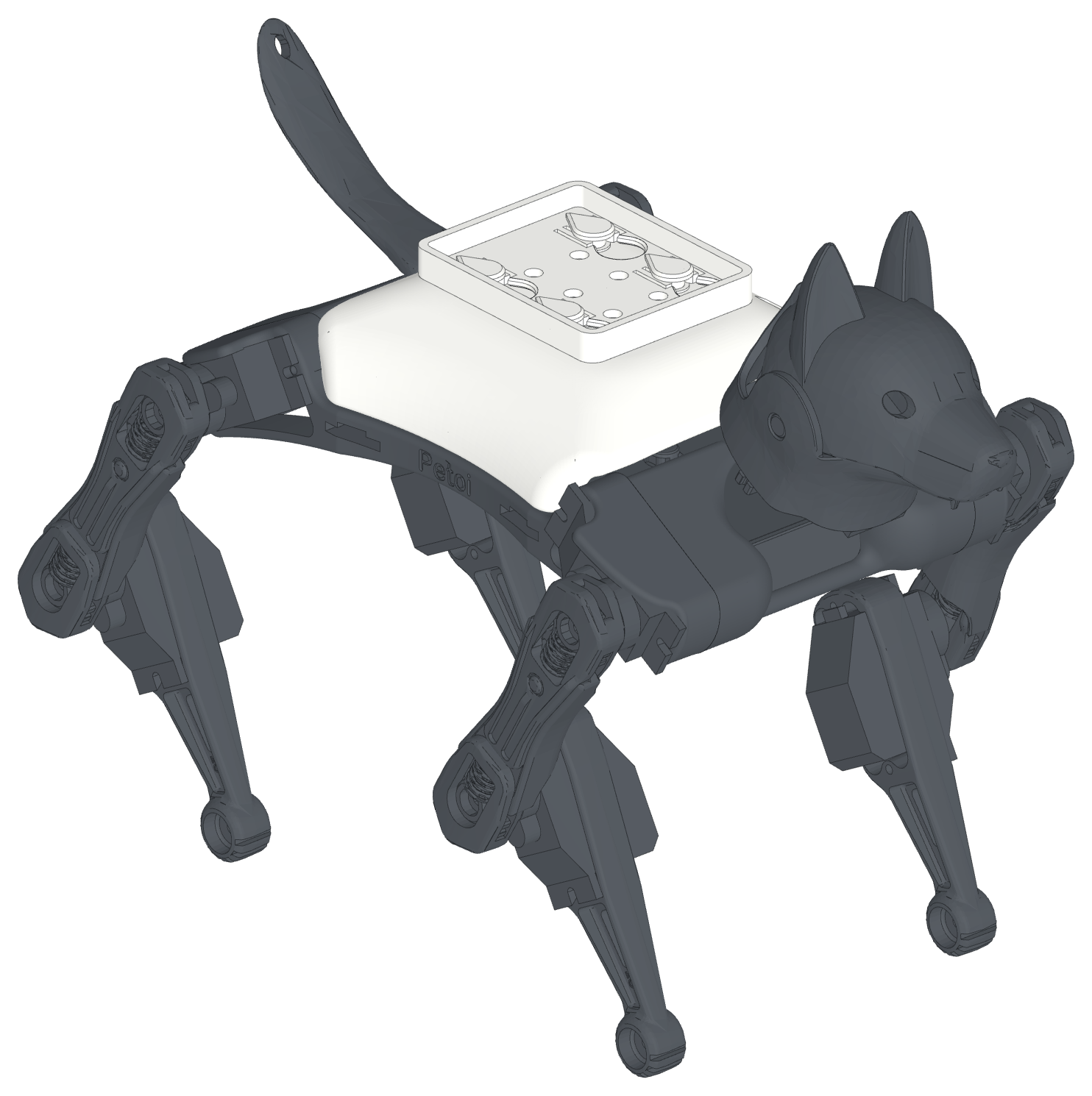

Bittle X Platform v3.2
The stock Petoi Bittle X back cover with 4 pegs on its top. Add-ons drop onto the pegs, slide 7 mm forward and click into place. No tools, glue or tape are necessary. The spec gives every number that you need to design an add-on.

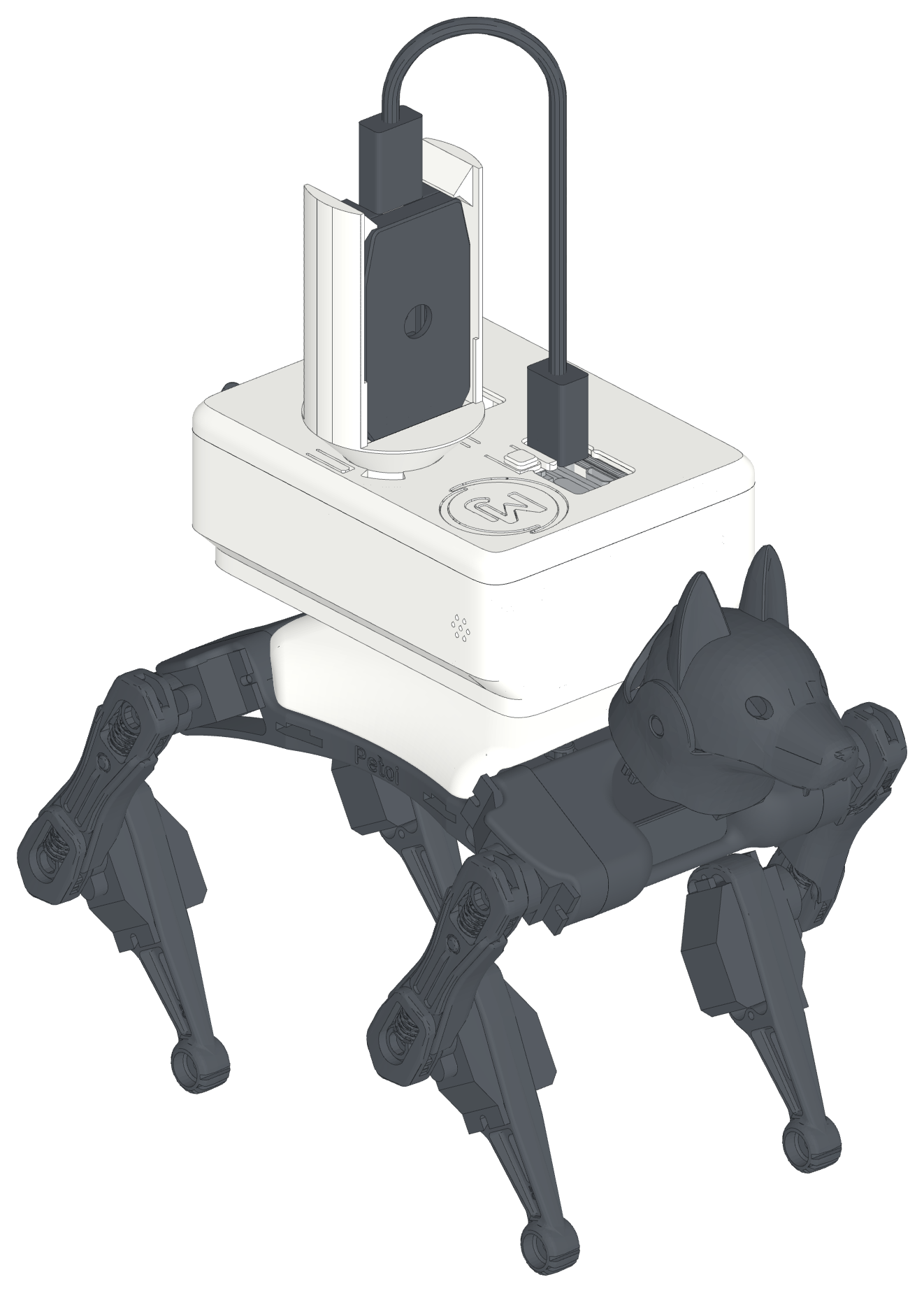

Bittle X Pi Add-on v0.24

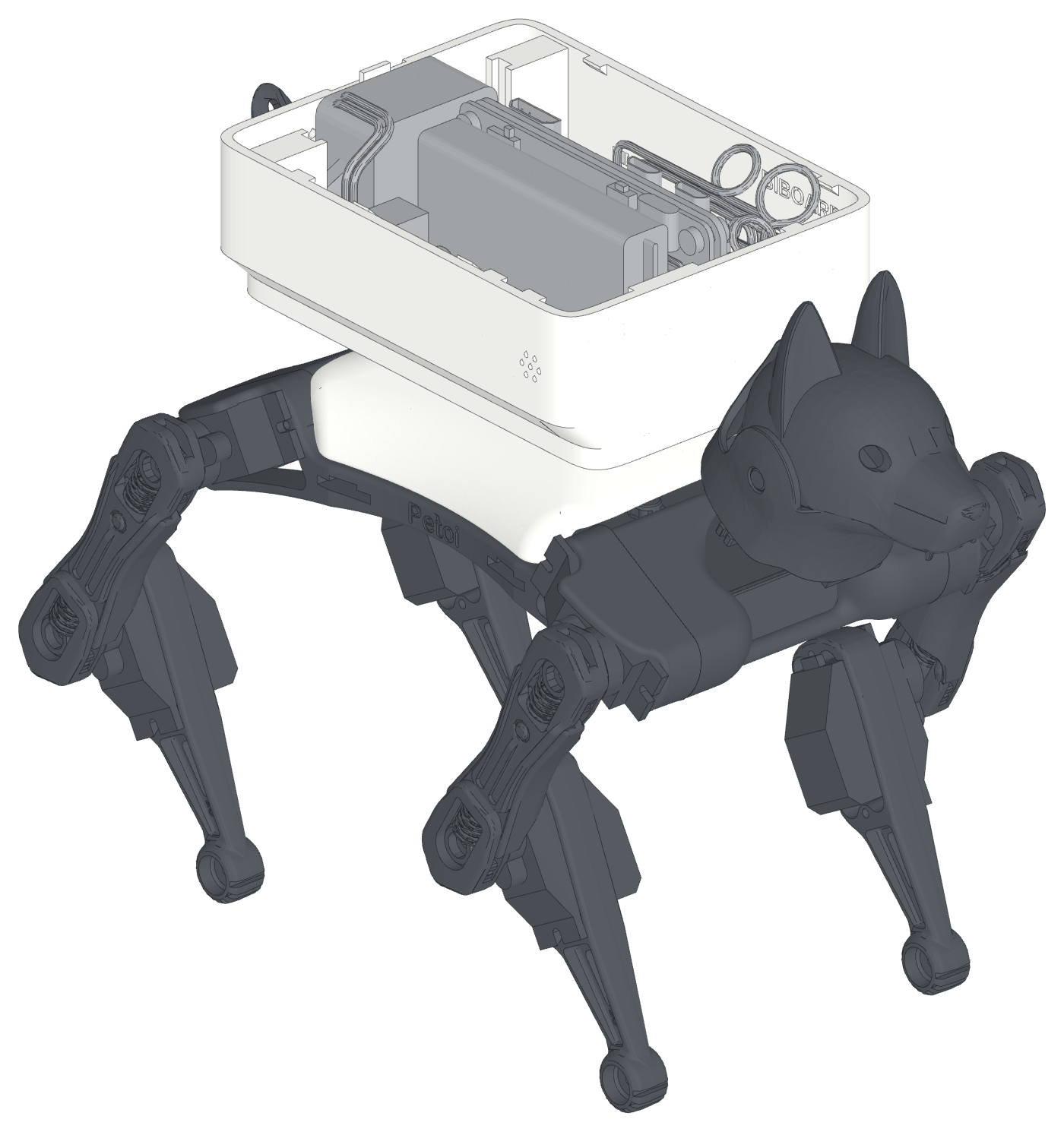

A sample add-on for the platform: Raspberry Pi Zero 2 W, PiSugar S (1200 mAh), NS4168 amp with a 3 W speaker, an SPH0645 mic and the Petoi AI Vision Module, in a rounded box with a slide-on top panel. All printed parts print without supports. Two optional parts hold the camera lower when the robot has no head.
